How do I prepare, upload, and evaluate 27k / 450k data? (Multi-block data format)

Introduction¶

27k and 450k References¶

In order to grasp the general procedure of understanding and utilizing the 27k and 450k output we recommend some of the following manuscripts:

27k
- DNA methylation profiling reveals a predominant immune component in breast cancers
  - http://onlinelibrary.wiley.com/doi/10.1002/emmm.201100801/abstract;jsessionid=16E66DB216D0684E4EC0D0701F25E0E8.d03t04
450k
- Validation of a DNA methylation microarray for 450,000 CpG sites in the human genome
  - http://www.landesbioscience.com/journals/epigenetics/article/16196/?nocache=54549194
- Evaluation of the Infinium Methylation 450K technology
  - http://www.futuremedicine.com/doi/full/10.2217/epi.11.105

Tutorial Data Set¶

In order to illustrate how to use the Genboree Workbench to evaluate 27k / 450k data, we're going to demonstrate how to utilize a publicly available data set:

Validation of a DNA methylation microarray for 450,000 CpG sites in the human genome
- http://www.landesbioscience.com/journals/epigenetics/article/16196/?nocache=54549194

The data set that we are going to start with resides in the Supplementary section of the GEO web site:

http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE29290
- Download and decompress this file:
  - http://www.ncbi.nlm.nih.gov/geosuppl/?acc=GSE29290&file=GSE29290%5FMatrix%5FProcessed%2Etxt%2Egz
    - GSE29290_Matrix_Processed.txt.gz
      - GSE29290_Matrix_Processed.txt.zip

Data format:

The data can be tab or comma delimited format
One column has to represent the probe ID
- I.e. cg00000029
One column has to represent the probe score for each sample (i.e. <sample>.AVG_Beta, <sample>.M-value, etc.)

ID_REF    Sample_1.AVG_Beta    Sample_1.Detection Pval    Sample_2.AVG_Beta    Sample_2.Detection Pval    Sample_3.AVG_Beta    Sample_3.Detection Pval
cg00000029    0.8296142    0    0.852155     0    0.8956234    0   ...
cg00000108    0.8492596    0    0.8898684    0    0.9276204    0   ...
cg00000109    0.8247395    0    0.8609225    0    0.8725377    0   ...
cg00000165    0.8228635    0    0.8665444    0    0.8800115    0   ...
...              ...      ...     ...      ...        ...     ...  ...

Preparing Processed Matrix for Genboree Workbench¶

We need to take the processed matrix and prepare it for import within the 'Array Data Importer' utility. Please read the help on this tool, but we will also post the necessary file format here:

Format:

##trackName=myTrackName_1:trackSubName_1
#Probe_Name<tab>Score_Value
<ProbeID_1><tab><ProbeScore_1>
<ProbeID_2><tab><ProbeScore_2>
<ProbeID_3><tab><ProbeScore_3>
...
##trackName=myTrackName_2:trackSubName_2
#Probe_Name<tab>Score_Value
<ProbeID_1><tab><ProbeScore_1>
<ProbeID_2><tab><ProbeScore_2>
<ProbeID_3><tab><ProbeScore_3>
...

Actual implementation of above sample (in data format):

##trackName=Sample_1.AVG_Beta:Subset_avg_beta
#Probe	Score
cg00000029	0.8296142
cg00000108	0.8492596
cg00000109	0.8247395
cg00000165	0.8228635
##trackName=Sample_2.AVG_Beta:Subset_avg_beta
#Probe	Score
cg00000029	0.852155
cg00000108	0.8898684
cg00000109	0.8609225
cg00000165	0.8665444

You will note the following:

A header line for each separate sample followed by the column headers
- This will repeat every time you wish to import an additional sample
A unique track name
Probe IDs that exist within the ROI (region of interest) annotation track
Numerical values for the Score data

The output of this process is provided in the following file:

GSE29290_Matrix_Processed.txt-array_format-450k.tsv.zip

Preparing Metadata for 27k & 450k Data Sets¶

In order to be able to utilize the Genboree Workbench to analyze your array data, it is most convenient if you produce some metadata for your samples. Providing metadata for your samples will allow you to more easily create sets of tracks (called Track Entity Lists) in order to be able to evaluate your samples in a variety of groups.

Creating Track Metadata

This example has 2 metadata columns
- cell_type
  - Colorectal_cancer
  - Colorectal_cancer_knock_out
  - Breast_normal
  - Breast_tumor
- experiment_type
  - 450k

#name	cell_type	experiment_type
Sample_1.AVG_Beta:450k_avg_beta	Colorectal_cancer	450k
Sample_2.AVG_Beta:450k_avg_beta	Colorectal_cancer	450k
Sample_3.AVG_Beta:450k_avg_beta	Colorectal_cancer	450k
Sample_4.AVG_Beta:450k_avg_beta	Colorectal_cancer_knock_out	450k
Sample_5.AVG_Beta:450k_avg_beta	Colorectal_cancer_knock_out	450k
Sample_6.AVG_Beta:450k_avg_beta	Colorectal_cancer_knock_out	450k
Sample_7.AVG_Beta:450k_avg_beta	Breast_normal	450k
Sample_8.AVG_Beta:450k_avg_beta	Breast_normal	450k
Sample_9.AVG_Beta:450k_avg_beta	Breast_normal	450k
Sample_10.AVG_Beta:450k_avg_beta	Breast_normal	450k
Sample_11.AVG_Beta:450k_avg_beta	Breast_normal	450k
Sample_12.AVG_Beta:450k_avg_beta	Breast_normal	450k
Sample_13.AVG_Beta:450k_avg_beta	Breast_normal	450k
Sample_14.AVG_Beta:450k_avg_beta	Breast_normal	450k
Sample_15.AVG_Beta:450k_avg_beta	Breast_tumor	450k
Sample_16.AVG_Beta:450k_avg_beta	Breast_tumor	450k
Sample_17.AVG_Beta:450k_avg_beta	Breast_tumor	450k
Sample_18.AVG_Beta:450k_avg_beta	Breast_tumor	450k
Sample_19.AVG_Beta:450k_avg_beta	Breast_tumor	450k
Sample_20.AVG_Beta:450k_avg_beta	Breast_tumor	450k
Sample_21.AVG_Beta:450k_avg_beta	Breast_tumor	450k
Sample_22.AVG_Beta:450k_avg_beta	Breast_tumor	450k

File:

GSE29290_full_track_metadata.tsv

Using the Genboree Workbench to Evaluate 27k & 450k Data Sets - Step by Step¶

Create a new Database
- Drag your group into the 'Output Targets' window
- Click 'Data' -> 'Databases' -> 'Create Database'
- Select 'Template: Human (hg19)
- Enter a Database Name
- Click Submit

Create a new Project
- Drag your group into the 'Output Targets' window
- Click 'Data' -> 'Projects' -> 'Create Project'
- Enter Project Name
- Click Submit

Upload your prepared array data ('GSE29290_Matrix_Processed.txt-array_format-450k.tsv.zip')
- (Remove your Group from the 'Output Targets' window
- Drag your Database into the 'Output Targets' window
- Click 'Data' -> 'Files' -> 'Transfer File'
- Choose your file
- Click Submit

Import your array data
- Drag your Database into the 'Output Targets' window
- Drag your file into the 'Input Data' window
  - This file is located in your_group -> Databases -> your_database -> Files
- Click 'Data' -> 'Tracks' -> 'Import' -> 'Array Data'
- Select 'Hs Methylation:450k'
  - You would select 'Hs Methylation:27k' if you are using 27k data
- Select File Format 'Muti-block'
- Click Submit
- Wait for success email

Hello Kevin Riehle,

Your Array Data Importer job has completed successfully.

JOB SUMMARY:
  JobID          : wbJob-arraydataimporter-1347059333_775361

The following array/probe file has been imported:
 GSE29290_Matrix_Processed.txt-array_format-450k.tsv

The following tracks were uploaded in the target database:

Sample_19.AVG_Beta:450k_avg_beta
Sample_2.AVG_Beta:450k_avg_beta
Sample_1.AVG_Beta:450k_avg_beta
Sample_3.AVG_Beta:450k_avg_beta
Sample_15.AVG_Beta:450k_avg_beta
Sample_17.AVG_Beta:450k_avg_beta
Sample_16.AVG_Beta:450k_avg_beta
Sample_14.AVG_Beta:450k_avg_beta
Sample_12.AVG_Beta:450k_avg_beta
Sample_8.AVG_Beta:450k_avg_beta
Sample_9.AVG_Beta:450k_avg_beta
Sample_7.AVG_Beta:450k_avg_beta
Sample_13.AVG_Beta:450k_avg_beta
Sample_21.AVG_Beta:450k_avg_beta
Sample_22.AVG_Beta:450k_avg_beta
Sample_5.AVG_Beta:450k_avg_beta
Sample_11.AVG_Beta:450k_avg_beta
Sample_6.AVG_Beta:450k_avg_beta
Sample_10.AVG_Beta:450k_avg_beta
Sample_4.AVG_Beta:450k_avg_beta
Sample_18.AVG_Beta:450k_avg_beta
Sample_20.AVG_Beta:450k_avg_beta

The Genboree Team
...

Add Track Metadata

Upload track metadata file
- GSE29290_track_metadata.tsv
Drag your File (i.e. 'GSE29290_full_track_metadata.tsv') to 'Input Data' window
Drag your Database to 'Output Targets' window
Click 'Data' -> 'Tracks' -> 'Import' -> 'Track Metadata'
- Uncheck 'Create New Tracks?'
- Click Submit

Quickly Create Track Entity Lists

Drag your Database into 'Input Data'
Click 'Visualization' -> 'View Track Grid'
- X-axis attribute
  - cell_type
- Y-axis attribute
  - experiment_type
- Click Submit
- Click the blue hyperlink 'Launch Grid Viewer'

Create Track Entity Lists - All Samples

Select the (8) Breast_normal cell, the (8) Breast_tumor cell, the (3) Colorectal_cancer cell, and the (3) Colorectal_cancer_knock_out cell.
Click 'Selections' -> 'Save Selections'
- Select your Group
- Select your Database
- Type in a name (i.e. 'all22samplesTrackEntityList_A')
- Click 'Save Selections'
Select the (8) Breast_tumor cell
Click 'Selections' -> 'Save Selections'
- Select your Group
- Select your Database
- Type in a name (i.e. ''all22samplesTrackEntityList_B')
- Click 'Save Selections'

You Can Also Create Track Entity Lists Based on Metadata Labels

Select the (8) Breast_normal cell
Click 'Selections' -> 'Save Selections'
- Select your Group
- Select your Database
- Type in a name (i.e. 'Breast_normal_450k')
- Click 'Save Selections'
Select the (8) Breast_tumor cell
Click 'Selections' -> 'Save Selections'
- Select your Group
- Select your Database
- Type in a name (i.e. 'Breast_tumor_450k')
- Click 'Save Selections'

Heatmap¶

Run Heatmap on All Tracks
- (Clear any entries in the 'Input Data' window if they exist)
- Drag your two track entity lists into the 'Input Data' window (i.e. 22samplesTrackEntityList_A and 22samplesTrackEntityList_B)
  - These track entity lists are located in your_group -> Databases -> your_database -> Lists & Selections -> List of Tracks
- Drag your desired ROI (regions of interest) track into the 'Input Data' window
  - For example, you can use the Promoters:LCP ROI track
    - This track is located in ROI Repository -> Databases -> ROI Repository - hg19 -> Tracks -> Class: Regulation
- Drag your Database into the 'Output Targets' window
- Drag your Project into the 'Output Targets' window
- Click 'Epigenome' -> 'Compute Similarity Matrix (heatmap)'
- Click Submit
- Wait for a confirmation email


  Hello Kevin Riehle,

  Your Epigenomic Experiment Heatmap Tool job completed successfully.

  Job Summary:
    JobID          - wbJob-epigenomicsheatmap-1347635780_213632
    Analysis Name  - EpigenomeExpHeatmap2012-09-14-10:15:54
  Inputs:
    1. Entitylist       - 450k_1
    2. Entitylist       - 450k_2
    3. Trk              - Promoters%3ALCP
  Outputs:
    1. Db               - 450ktest_full
    2. Prj              - 450k
  Settings:
    analysisName        - EpigenomeExpHeatmap2012-09-14-10:15:54
    clusterQueue        - gbMultiCore
    color               - Spectral
    dendograms          - both
    density             - histogram
    distfun             - dist
    fixedResolution     - medium
    hclustfun           - hclust
    height              - 8
    key                 - TRUE
    keySize             - 0.75
    quantileNormalized  - true
    removeNoDataRegions - true
    spanAggFunction     - avg
    trace               - none
    width               - 10

- The Genboree Team

Result File Location in the Genboree Workbench:
  http://www.genboree.org/java-bin/project.jsp?projectName=450k

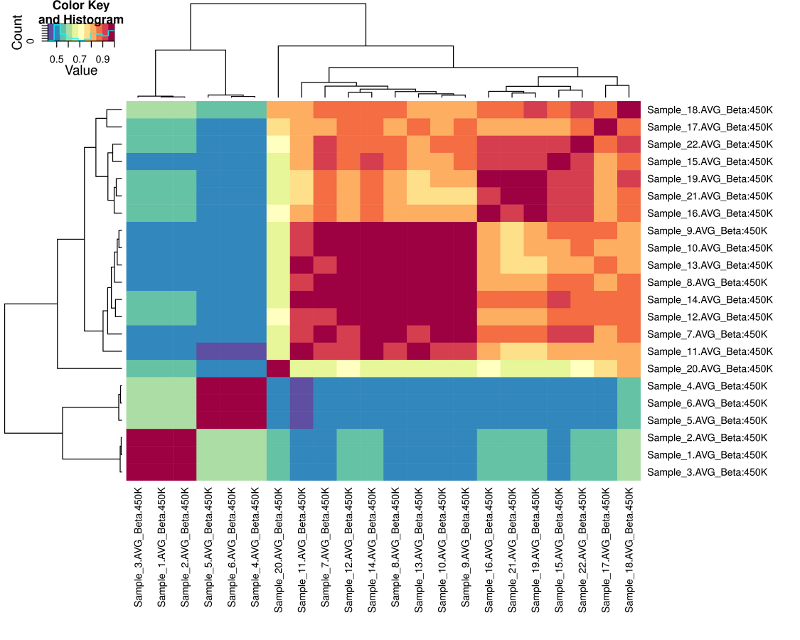

Heatmap results:

You will see that we witness clustering among:
- 8 Breast_normal
- 7 Breast_tumor (Sample_20 is an outlier)
- 3 Colorectal_cancer
- 3 Colorectal_cancer_knock_out

LIMMA¶

Run LIMMA

Drag your first track entity list into the 'Input Data' window (i.e. 'Breast_normal_450k')
Drag your second track entity list into the 'Input Data' window (i.e. 'Breast_tumor_450k')
Drag your ROI (regions of interest) track into the 'Input Data' window (i.e. 'Promoters:ALL)
- This track is located in ROI Repository -> Databases -> ROI Repository - hg19 -> Tracks -> Class: Regulation
Drag your Database into the 'Output Targets' window
Drag your Project into the 'Output Targets' window
Click 'Epigenome' -> 'Analyze Signals' -> 'Compare by LIMMA' -> 'Tracks'
- Click Submit
- Wait for confirmation emails:
  - "Genboree: Your Epigenomic Experiment Sets Comparison Using Limma job is complete"
  - "LFF API Upload [SUCCESS]"

SPARK¶

Run SPARK

Drag your first track entity list into the 'Input Data' window (i.e. 'Breast_normal_450k')
Drag your second track entity list into the 'Input Data' window (i.e. 'Breast_tumor_450k')
Drag your ROI (regions of interest) track into the 'Input Data' window (i.e. 'Promoters:ALL)
- This track is located in ROI Repository -> Databases -> ROI Repository - hg19 -> Tracks -> Class: Regulation
Drag your Database into the 'Output Targets' window
Click 'Epigenome' -> 'Analyze Signals' -> 'Cluster by Spark'
- Select your ROI Track
  - Single click on your ROI track (i.e. Promoters:LCP)
- Customize the settings or leave the defaults
- Optionally change track colors
  - I.e. change samples 15-22 to 'green' for Data Track Colors
- Click Submit
- Wait for confirmation email and follow directions

GSE29290_full_track_metadata.tsv (1.2 KB) Riehle, Kevin, 10/03/2012 01:59 pm

GSE29290_Matrix_Processed.txt-array_format-450k.tsv.zip (77.3 MB) Riehle, Kevin, 10/03/2012 01:59 pm

GSE29290_Matrix_Processed.txt.zip (46.8 MB) Riehle, Kevin, 10/03/2012 01:59 pm


Also available in: PDF

Epigenome_Informatics_Workshop
